The Genuine Atlas Copco 1837035000 (1616727581) KIT ELEMENT LP-T3 represents the gold standard in oil-free air compression technology. We source this product directly from Atlas Copco (Shanghai) Trading Co., Ltd. as a brand-new, 100% genuine original unit.
The Genuine Atlas Copco 1837035000 (1616727581) KIT ELEMENT LP-T3 represents the gold standard in oil-free air compression technology. We source this product directly from Atlas Copco (Shanghai) Trading Co., Ltd. as a brand-new, 100% genuine original unit.
Industrial compressed air systems demand absolute reliability, uncompromising purity, and maximum energy efficiency. The Genuine Atlas Copco 1837035000 (1616727581) KIT ELEMENT LP-T3 represents the gold standard in oil-free air compression technology. Specially engineered as the low-pressure (LP) compression stage for Atlas Copco ZR oil-free rotary tooth air compressors, this precision compression element ensures continuous 100% oil-free air delivery for sensitive industrial applications.
We source this product directly from Atlas Copco (Shanghai) Trading Co., Ltd. as a brand-new, 100% genuine original unit. Engineered and manufactured in Belgium, the LP-T3 element kit integrates perfectly into existing compressed air architectures, restoring original factory efficiency, reducing operating temperature, and preventing air contamination risks. When critical processes depend on pure compressed air without micro-oil vapor risks, genuine Atlas Copco elements deliver the ultimate technical standard.

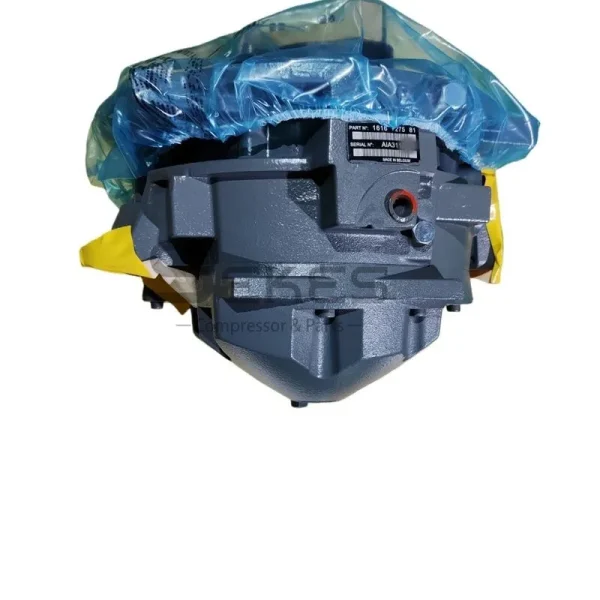

1837035000 (1616727581) ATLAS COPCO KIT ELEMENT LP-T3 (1)
Technical Specifications
Precision manufacturing and heavy-duty structural engineering define the LP-T3 element kit. Below are the complete factory specifications:

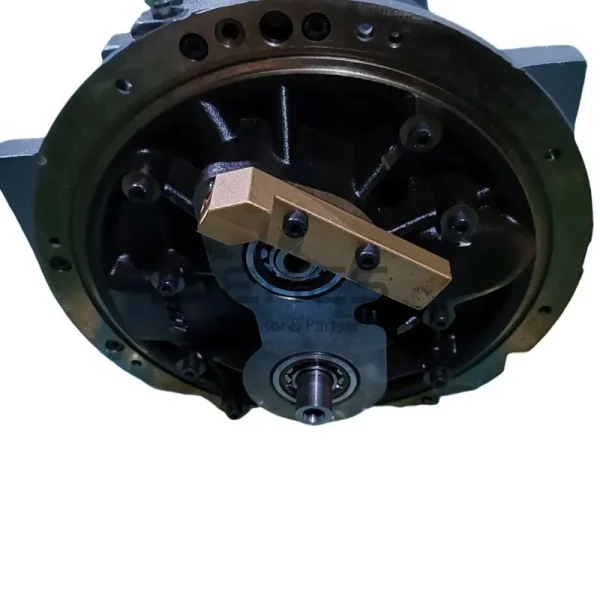

1837035000 (1616727581) ATLAS COPCO KIT ELEMENT LP-T3 (2)
Core Working Principle
Understanding how the LP-T3 element operates highlights why original factory precision remains essential for system health.
The LP-T3 element functions as the low-pressure (first) stage in Atlas Copco ZR oil-free tooth compressors. The core mechanism consists of two precision-machined, counter-rotating metallic tooth rotors housed within a heavy-duty cast-iron chamber.
1. Air Intake Phase: As the drive motor powers the rotor shaft, the intermeshing tooth profiles rotate away from each other, expanding the internal chamber volume. Atmospheric air passes through the intake filter and enters the low-pressure element housing.
2. Compression Phase: As rotation continues, the precision tooth profiles close off the intake port and traps the ambient air inside the reducing compression chamber. The synchronized movement compresses the air without any metal-to-metal contact between the rotors or against the housing wall.
3. Oil-Free Sealing Mechanism: Traditional lubricated compressors rely on oil injection to seal, cool, and lubricate the rotors. The LP-T3 element utilizes proprietary low-friction PTFE rotor coatings and precision-machined mechanical air/oil seals. These specialized seals isolate the compression chamber completely from the gear lubricant running through the driving gear train.
4. Discharge Phase: As the air reaches optimum low-pressure compression, the intermeshing teeth align with the discharge outlet, driving heat-dissipated, oil-free compressed air directly toward the intercooler before it moves into the high-pressure (HP) compression stage.
Because the rotors turn with microscopic clearances without contact, the LP-T3 element eliminates wear-induced metallic particles while generating zero oil vapor in the compressed airstream.

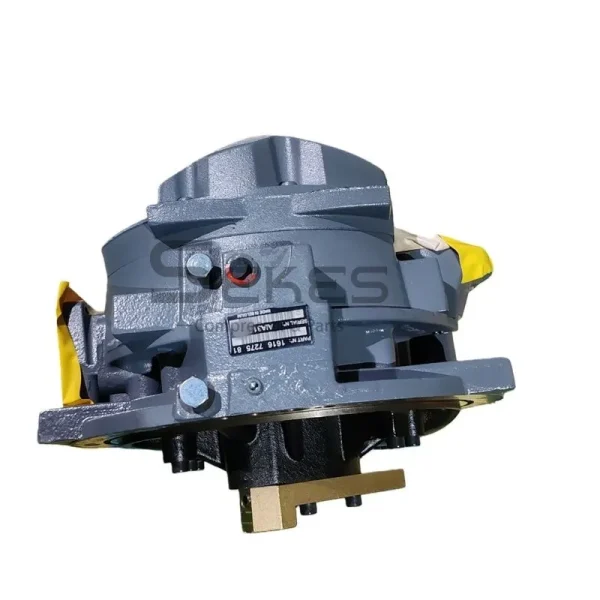

1837035000 (1616727581) ATLAS COPCO KIT ELEMENT LP-T3 (3)
Product Advantages
Investing in a genuine LP-T3 element from Atlas Copco (Shanghai) Trading Co., Ltd. secures multi-layered operational advantages for high-demand production facilities:
100% Certified Oil-Free Air Quality: Manufactured to strict ISO 8573-1 CLASS 0 standards, this element prevents oil contamination in sensitive production environments such as pharmaceuticals, food and beverage processing, electronics, and automotive painting.
Proprietary High-Durability Coatings: Atlas Copco applies advanced rotor surface coatings that resist thermal expansion, corrosion, and continuous abrasion. These coatings maintain optimal rotor tolerances throughout millions of operating cycles.
Exceptional Energy Savings: Microscopic precision manufacturing reduces internal air leakage and slip losses. The LP-T3 element reduces overall specific energy consumption (SEC), cutting daily electrical demand across compressor duty cycles.
Seamless Plug-and-Play Fitment: Original structural dimensions (520×450×450 mm) align precisely with existing pipe headers, mounting flanges, gearboxes, and oil seal housings, guaranteeing zero installation delays or alignment errors.
Thermal and Vibration Resistance: Engineered with heavy-duty Belgium metallurgy, the casing handles continuous high operating temperatures and mechanical stress without warping or losing compression tolerance.

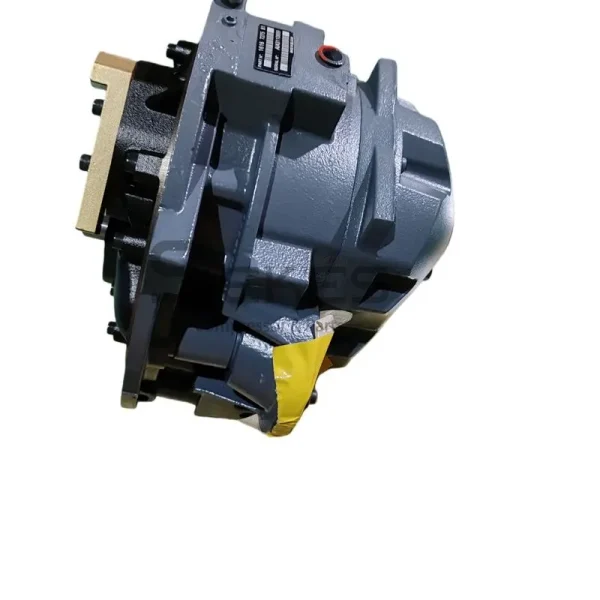

1837035000 (1616727581) ATLAS COPCO KIT ELEMENT LP-T3 (4)
When to Replace LP-T3 Element
While Atlas Copco designs LP-T3 elements for prolonged service life, natural mechanical wear, environmental dust, and continuous thermal cycling eventually degrade internal efficiency. Operators should inspect and plan element replacements under the following operational conditions:
1. Reaching Recommended Operating Hours: Atlas Copco generally recommends a comprehensive element overhaul or complete unit replacement between 24,000 to 40,000 running hours (depending on operating ambient conditions and air filter maintenance rigor).
2. Persistent Temperature Spikes: Elevated discharge temperatures at the first stage indicate degraded rotor coating or internal air re-circulation due to increased rotor clearance.
3. Loss of Output Pressure & Free Air Delivery: When the compressor struggles to maintain baseline working pressure or requires higher motor RPM to achieve rated pressure, internal rotor wear has likely compromised compression efficiency.
4. Abnormal Noise or Vibration: Increased mechanical noise or elevated vibration spectra during operation often signals bearing wear, shaft imbalance, or seal degradation within the element casing.
5. Oil Contamination in Air/Condensate Lines: Failure of internal dynamic shaft seals can allow gearbox lubricant into the air chamber, compromising Class 0 purity and requiring immediate element replacement.

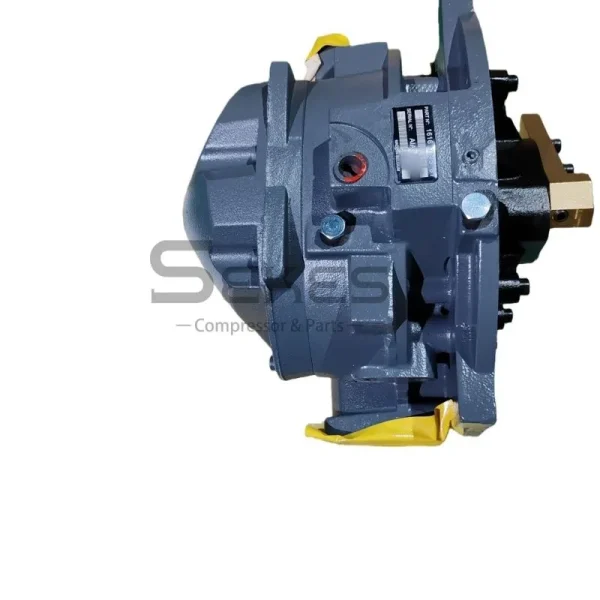

1837035000 (1616727581) ATLAS COPCO KIT ELEMENT LP-T3 (5)
Installation & Replacement Guide
*Note: Replacement must be performed by certified compressed air technicians using calibrated torque wrenches and lifting equipment.*
Step 1: Safety Isolation & System De-pressurization
* Disconnect the main electrical power supply and perform complete Lockout/Tagout (LOTO) procedures.
* Close the air outlet isolation valve. Vent all internal residual pressure from the ZR compressor system until the internal pressure gauge reads zero.
Step 2: Component Disassembly & Air Path Preparation
* Remove outer acoustic canopy panels to gain unrestricted workspace access.
* Disconnect the air inlet piping, intercooler piping connections, cooling water lines (if applicable), and instrumentation sensors attached to the LP-T3 element.
* Drain the oil sumps if working on interconnected gearbox sections to prevent cross-contamination during removal.
Step 3: Removing the Old LP-T3 Element
* Attach certified rigging straps to the element’s designated lifting points. Secure the hoist to bear the 90 kg weight safely.
* Unbolt mounting flange fasteners connecting the LP-T3 element to the central gearbox.
* Carefully slide the element horizontally along alignment dowels before hoisting it clear from the compressor chassis.
Step 4: Mounting the Brand-New Original LP-T3 Element
* Unpack the new 1616727581 LP-T3 element in 1837035000 kit.
* Inspect all sealing faces, gear splines, and O-ring grooves. Install fresh original gaskets and seals supplied with the element kit.
* Align the drive gear splines carefully with the central drive gear. Guide the new 90 kg element onto the gearbox locator pins.
* Cross-tighten mounting bolts in a diagonal pattern to exact factory torque specifications.
* Reconnect air intake manifolds, discharge pipework, and sensor leads using fresh seal rings.
* Fill the gearbox with fresh Atlas Copco oil-free compressor lubricant to the designated sight-glass level. Hand-rotate the drive coupling to verify free rotor rotation without binding.
* Restore power, clear LOTO devices, and execute a short dry run to check rotation direction.
* Run the unit under no-load conditions for 15 minutes, inspect for oil or air leaks, and gradually increase load while monitoring discharge pressure, vibration levels, and operating temperatures.

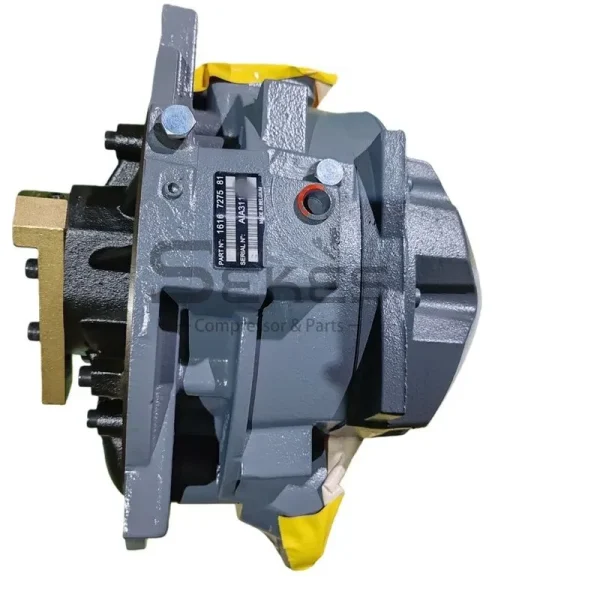

1837035000 (1616727581) ATLAS COPCO KIT ELEMENT LP-T3
More Oil-free Air Ends List
Part Number
Part Name
Order Number
1616635681
O.F.S. Q-21
1616-6356-81
1616635682
O.F.S. Q-22
1616-6356-82
1616635683
STAGE 6 GAS
1616-6356-83
1616635688
OFS Q-21
1616-6356-88
1616716287
O.F.S. Q-27
1616-7162-87
1616630581
O.F.S. O-21
1616-6305-81
1616630582
O.F.S. O-22
1616-6305-82
1616630583
COMPR.ELEMENT
1616-6305-83
1616630588
OFS O-21
1616-6305-88
1616716187
O.F.S. O-27
1616-7161-87
1616590461
O.F.S. M-25
1616-5904-61
1616590463
O.F.S. M-26
1616-5904-63
9825008481
O.F.S. M-21
9825-0084-81
1616590481
O.F.S. M-21
1616-5904-81
1616590482
O.F.S. M-22
1616-5904-82
1616590483
O.F.S. M-23
1616-5904-83
1616590488
OFS M-28
1616-5904-88
1616718787
OFS M-27
1616-7187-87
1616580381
O.F.S. K-21
1616-5803-81
1616580382
O.F.S. K-22
1616-5803-82
1616580383
O.F.S. K-23
1616-5803-83
1616580388
O.F.S. K-28
1616-5803-88
1616718687
O.F.S. K-27
1616-5803-87
1616679281
O.F.S. I-41
1616-6792-81
1616747281
O.F.S. I-41
1616-7472-81
1616747282
O.F.S. I-42
1616-7472-82
1616747283
OFS I-02 GAS
1616-7472-83
1616747287
O.F.S. I-47
1616-7472-87
1616679288
O.F.S. I-48
1616-6792-88
1616747288
O.F.S. I-48
1616-7472-88
1616585181
O.F.S. G-21
1616-5851-81
1616585182
O.F.S. G-22
1616-5851-82
1616585183
O.F.S. G-23
1616-5851-83
1616585187
O.F.S. G-27
1616-5851-87
1616677081
ELEMENT COMPR
1616-6770-81
1616677082
O.F.S. E-22
1616-6770-82
1616677083
ELEMENT COMPR
1616-6770-83
1632002980
ELEMENT COMPR Z4 O.F.S.
1632-0029-80
1616550181
O.F.T. K-01
1616-5501-81
1616652781
O.F.T. I-01
1616-6527-81
1616855161
O.F.S. K-25
1616-8551-61
1616710781
OFT E-11
1616-7107-81
1616777381
ELEMENT COMPR
1616-7773-81
1616988381
OFS J-51
1616-9883-81
1616947181
ELEMENT COMPR
1616-9471-81
2236050100
AIR END ATSL-165E 3.7KW 8BAR
2902022201
2236050200
AIR END ATSL-165E 3.7KW 10BAR
2902022202
1616741883
ELEMENT 5.5KW 8 BAR OFSL/E03
2902022204
1616833682
AIREND OFSL D-02/3,7KW-10BAR
2902022211
Inquiry Now
Weight
90 kg
Dimensions
45 × 45 × 52 cm
Part Name
KIT ELEMENT LP-T3
Part Number
1837035000=1616727581
Price
$8,000.00 excl. VAT
HS Code
8414900090
Country of Origin
BELGIUM
Lead Time
3-5 Days
MOQ
1 UNIT
Packaging
Export Wooden Crate
Product Quality
100% Brand New, 100% Genuine, 100% Original
Transaction Mode
CFR, CIF, CIP, CPT, DAP, DDP, EXW, FCA, FOB
3 reviews for 1837035000 (1616727581): ATLAS COPCO KIT ELEMENT LP-T3
Class 0 air purity is non-negotiable for our semiconductor line.
Buying this original 1837035000 LP-T3 element sourced from Atlas Copco Shanghai gave us complete peace of mind. Installation went smoothly following standard torque specs. The compressor now runs quietly, energy consumption dropped noticeably, and test reports show zero oil contamination across all discharge manifolds.
0 of 0 found this review helpful
Rated 5 out of 5
Umer –
Great pricing, genuine original product
After 35,000 continuous operating hours, our original LP stage showed pressure drop. Installing this brand-new 1837035000 element completely restored factory performance. The solid Belgium manufacturing quality is clear right out of the crate. Great pricing, genuine original documentation, and seamless long-term efficiency for our facility’s critical air infrastructure.
0 of 0 found this review helpful
Rated 5 out of 5
Abdul Rafay –
Sichuan Sekes provided excellent procurement transparency and authentic factory parts.
We replaced our aging low-pressure stage with this genuine Atlas Copco 1837035000 LP-T3 element on our ZR compressor. Delivery was fast, and the unit fitted perfectly without alignment issues. Operating temperatures dropped by 8°C immediately, and air output recovered to full original specifications.
Sykes Mechanical And Electrical Technology Co., Ltd. is a professional one-stop supplier of Atlas Copco air compressor head & air end.
With over 10 years of sales and maintenance experience, the company provides reliable and cost-effective pre-sales and after-sales solutions to users worldwide.
At Sykes, professionalism is the foundation of global trust. We deliver reliable quality to support long-term partnerships, not one-time transactions. Guided by mutual respect, we work closely with every client as a true partner, creating shared success through consistency, transparency, and dependable service.
We are a dedicated supplier serving global industrial clients who value reliability and authenticity. By concentrating on Atlas Copco air compressor core components, we focus on delivering genuine, brand-new Atlas Copco air compressor head and air end together with reliable service, supporting customers in maintaining stable and efficient compressed air systems worldwide, helping customers reduce operational risks and downtime.
Professionalism is the cornerstone of trust.We believe lasting cooperation comes from mutual respect, transparent communication, and consistent performance. Every customer is viewed as a long-term partner, not a one-time transaction.
To become a globally trusted one-stop supplier of Atlas Copco air compressor heads and air ends, recognized for genuine products, professional service, and long-term partnership value.
